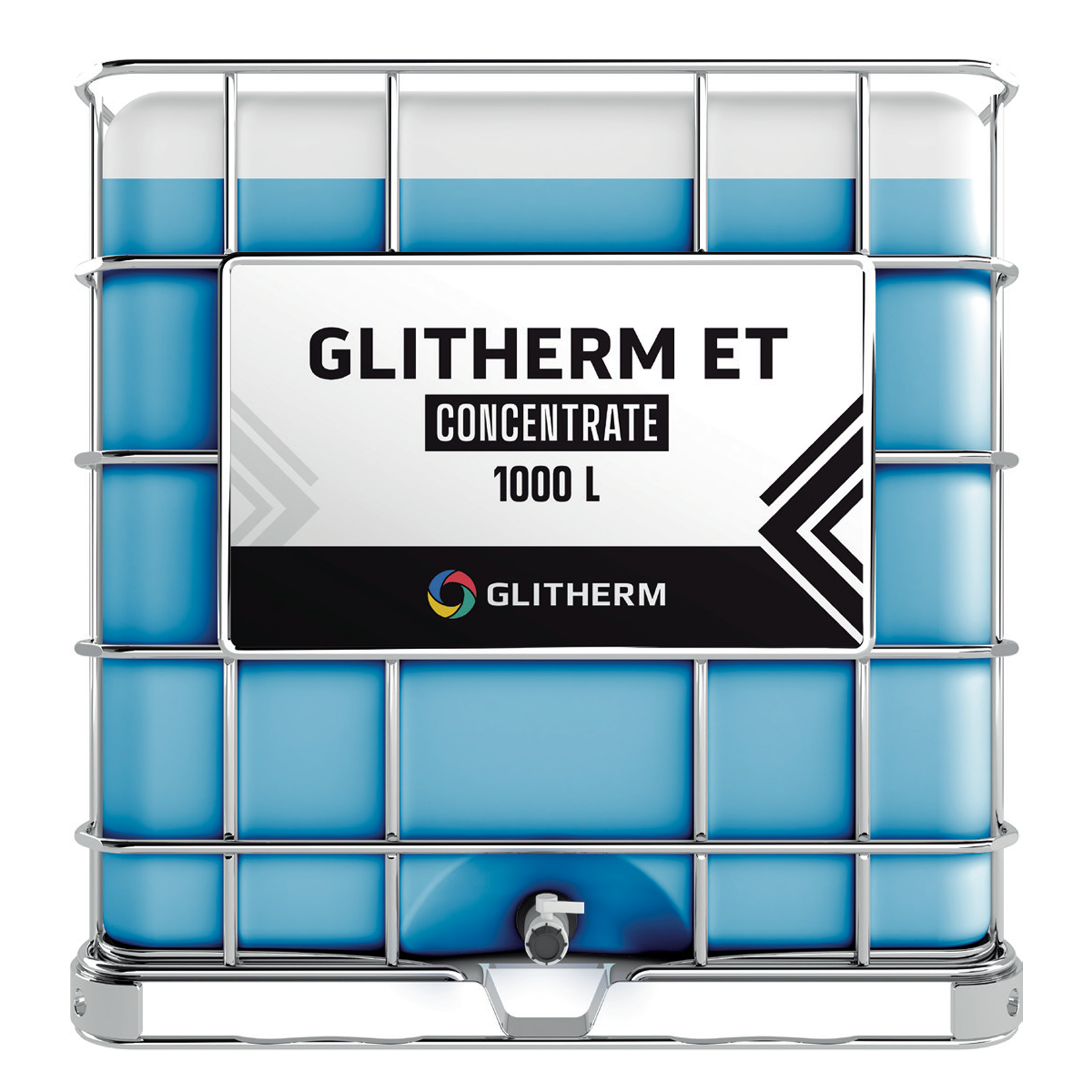

Name: Glitherm ET Concentrate
SKU: Gli-0087-1
Availability: InStock

CHARACTERISTICS

Concentrated formula
Reduced transport and storage requirements
Holds ITB Technical Recommendation
Custom blend preparation available to meet individual needs
Free of alcohols and glycerin
Provides anti-corrosion protection, prevents deposit formation, biofilm growth, overheating and freezing
Contains anti-foaming agents
Multi-season product
5-year warranty

Base color:

Available packages:

Clear

SZCZEGÓŁY

GLITHERM ET Concentrate is a highly concentrated heat transfer fluid and antifreeze concentrate designed to protect installations against freezing. The product is based on high-quality monoethylene glycol (MEG) and is intended for the preparation of working solutions with parameters adjusted to the requirements of a specific installation.

Designed for demanding heating, cooling and process installations. A carefully selected package of corrosion inhibitors and performance additives provides protection against corrosion, helps limit the formation of deposits and supports maintaining cleanliness inside the system. High-quality raw materials help protect the fluid and system components against degradation, supporting long-term and reliable operation.

Dilution
GLITHERM ET CONCENTRATE is not a ready-to-use product. It must be diluted before use. The manufacturer recommends using demineralized water to prepare working solutions.
To achieve the required level of freeze protection, prepare the mixture according to the table below:

Recommended minimum temperature of the mixture	Concentrate*	Demineralized Water*
-35°C	50%	50%
-30°C	47%	53%
-25°C	42%	58%
-20°C	37%	63%
-15°C	30%	70%

* Percentage by volume.

For non-standard operating temperatures not included in the table above, dilution of GLITHERM ET Concentrate should be consulted with the Customer Service Department. Our advisors will perform the necessary calculations and provide a dedicated solution tailored to the specific application.

Application
GLITHERM ET is intended for use in:

heating systems, central heating (CH) systems and technological heat recovery systems
refrigeration and air-conditioning systems (HVAC)
chilled water units
industrial process cooling systems
cold stores, freezing facilities and ice rinks
temperature control systems used in production processes
fire protection and sprinkler systems requiring freeze protection

Material Compatibility
GLITHERM ET working fluid is compatible with installations made of the following materials:

steel
cast iron
aluminium
copper
solder
brass

Application Restrictions
GLITHERM ET products should not be used in installations containing galvanized components, as they may contribute to accelerated corrosion and the formation of deposits, potentially reducing the operating performance of the system.

UV Leak Detection Additive
Upon request, the product can be enriched with a UV tracer that enables quick detection of leaks in the system using a UV lamp. The additive does not affect the product’s performance properties.

CLP Classification and Labelling
Always refer to the information provided on the product label.

H Phrases:
H302 Harmful if swallowed
H373 May cause damage to organs through prolonged or repeated exposure

P Phrases:
P102 Keep out of reach of children
P260 Do not breathe vapours / spray
P264 Wash hands thoroughly after handling
P270 Do not eat, drink or smoke when using this product
P301+P312 IF SWALLOWED: Call a POISON CENTRE / doctor if you feel unwell
P314 Get medical advice/attention if you feel unwell
P501 Dispose of contents/container to hazardous or special waste collection point
Contents: Ethane-1,2-diol

UFI: SN40-900D-8007-JFRS

Instructions for Use:

Always follow the system operating recommendations provided in the manufacturer’s instruction manual.
Intended Use: A glycol-based concentrate (ethylene glycol) for heating and cooling systems (protection against freezing and corrosion).
Dilution: Dilute with water before use (demineralized water recommended).
System Preparation: Before filling, it is recommended to drain and flush the system.
Application: Fill the system with the prepared solution and thoroughly vent it.
Control: Periodically check concentration (refractometer), pH, and fluid condition.
Operation: Replacement recommended every 3–5 years or depending on operating conditions.
Limitations: Do not use the concentrate undiluted. Do not mix with other fluids.
Storage: Store in tightly closed containers at temperatures between +5°C and +30°C.
Safety: Use in accordance with the Safety Data Sheet (SDS). Avoid contact with eyes and skin.

QR Glitherm ET concentrate

Please send me the product’s technical documentation:

Additional information

BASE COLOR: Blue.
AVAILABLE PACKAGING: 20L Canister, 220L DRUM, IBC/DPPL 1000L, Bulk in tanker/Tank container.
PRIVATE BRAND: Possibility to apply customer labels.

Application

GLITHERM ET Koncentrat może być wykorzystywany do przygotowywania gotowych mieszanek, które znajdą swoje zastosowanie w między innymi:

Industrial HVAC installations.
Heating installations.
Central heating installations
Sprinkler installations.
Instalacje chłodzące i klimatyzacyjne.
Industrial cooling systems (cold stores, ice rinks, cooling in production processes).
Chillery agregaty wody lodowej.
Wiele innych.

Advantages

Concentrated formula.
It takes up less space during transport and storage. The cost of transport is a significant part of the overhead, reducing this cost per unit package can give great savings.
The concentrate gives the opportunity to prepare a mixture with non-standard parameters, dedicated to a specific installation.
The possibility of preparing the working liquid on site just before filling the installation makes it possible to order the concentrate at an early stage of the investment, when, for example, information on the composition of the final mixture is not yet known.
It has a Technical Recommendation from ITB – Building Research Institute in Warsaw.
It protects all components of the system from corrosion except galvanized.
It protects the installation from low and high temperatures.
Prevents the formation of deposits.
Keeps the installation clean.
It has high performance parameters.
It ensures high installation efficiency for many years of operation.
It does not foam.
The raw materials used for production are not recycled.
Does not contain glycerin and alcohols.
It is widely used in various types of installations.
It is a multi-season agent.
It has a 5-year manufacturer’s warranty.

Dilution

GLITHERM ET CONCENTRATE is not a ready-to-use product. It should be diluted before use. The manufacturer recommends using only demineralized water for the preparation of working mixtures.

To obtain specific frost resistance, you should prepare the mixture according to the table below:

Dedicated minimum temperature for a given mixture in °C	% of concentrate*	% of demineralized water*
-35°C	50	50
-30°C	47	53
-25°C	42	58
-20°C	37	63
-15°C	30	70

* Volume percentage.

The dilution of GLITHERM ET Concentrate for non-standard operating temperatures not listed in the table above should be consulted with Customer Service. Advisors will carry out appropriate calculations and present a dedicated individual solution.

Packaging and Labels

We offer GLITHERM ET Antifreeze Concentrate in a wide range of retail and wholesale packaging. Depending on the customer’s preferences, the product can be packaged in the following packages:

20L canister – 12 pcs on half pallet, 42 pcs on a EURO pallet, 48 pcs on an industrial pallet.
220L drum – 1 pc on half pallet, 2 pcs on a EURO pallet, 4 pcs on an industrial pallet.
1000L IBC.
Bulk in a tank truck/tank container.

We can provide other packaging upon request.

It is also possible to label packages with the customer’s label or prepare a label in the language of the destination country.

The canisters are packed on a collective pallet and secured with stretch foil.

Transportation and Precautions

ADR Product: NO

Hazard Statement:

H302 Harmful if swallowed.
H373 May cause damage to organs through prolonged or repeated exposure.

Precautionary statements:

Prevention:

P102 Keep away from children.
P260 Do not breathe dust/fume/gas/mist/vapours/spray.
P264 Wash your hands thoroughly after use.
P270 Do not eat, drink or smoke when using this product.

Response:

P301+P312 IF SWALLOWED: Call a POISON CENTER/doctor if you feel unwell.
P314 If you feel unwell, seek medical advice/attention.

Removal:

P501 Dispose of the contents/container to a hazardous or special waste collection point.

Karta Charakterystyki Glitherm ET Koncentrat

Specyfikacja Techniczna Glitherm ET Koncentrat
